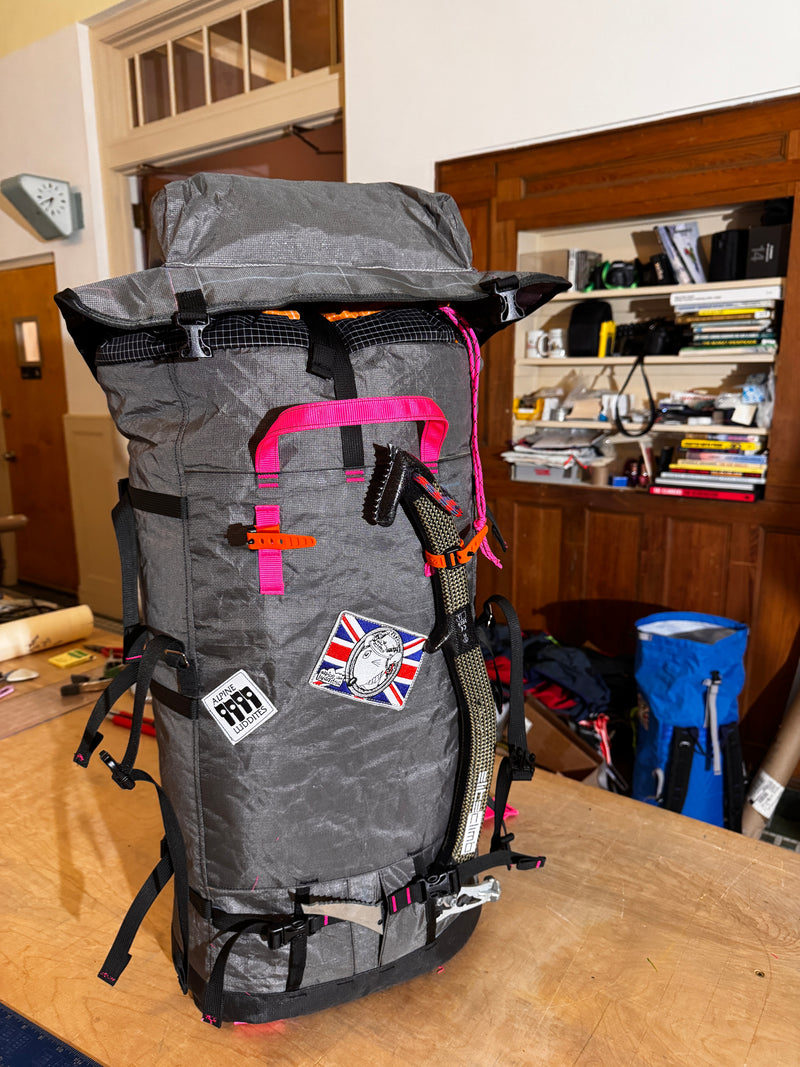

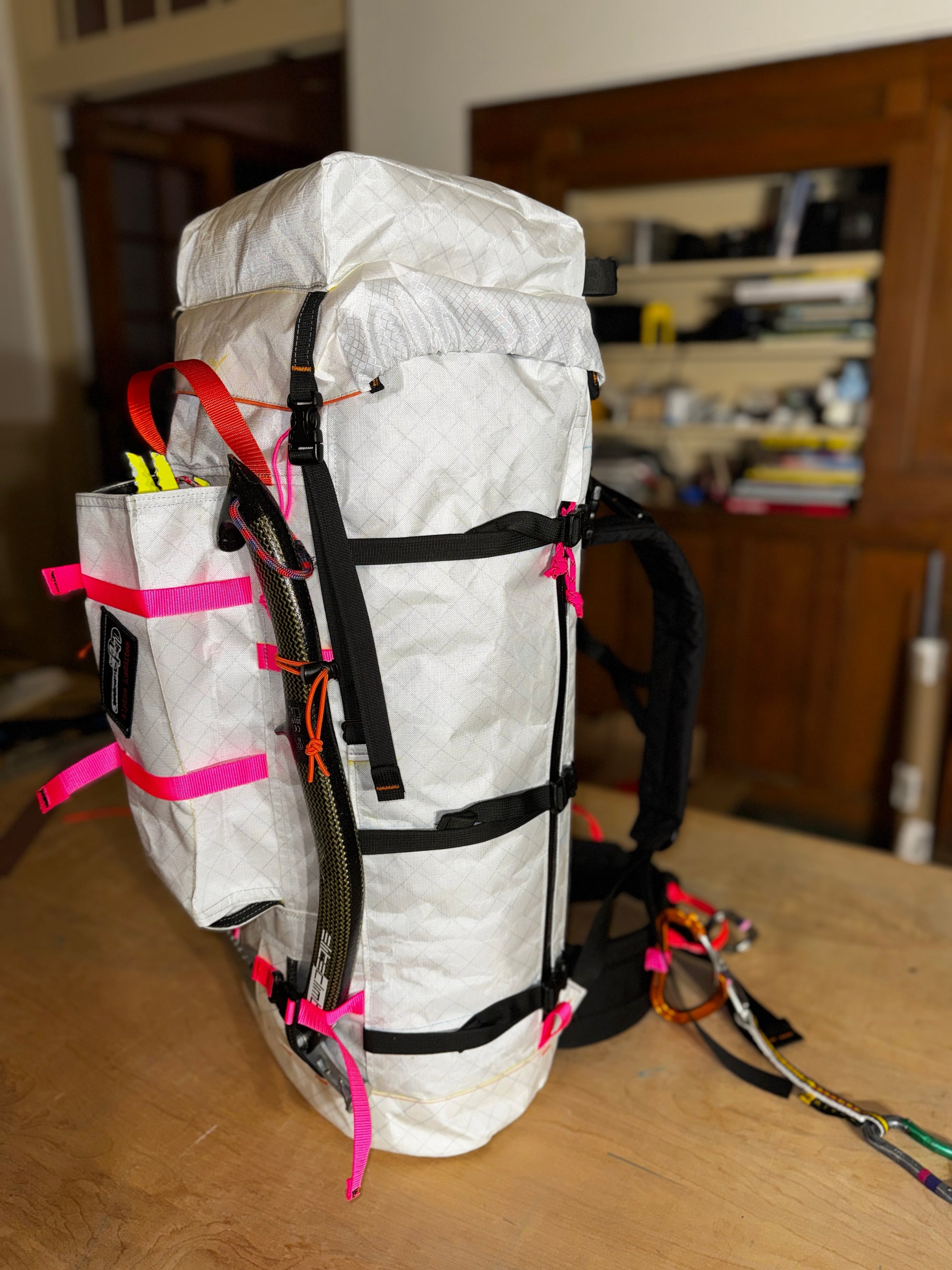

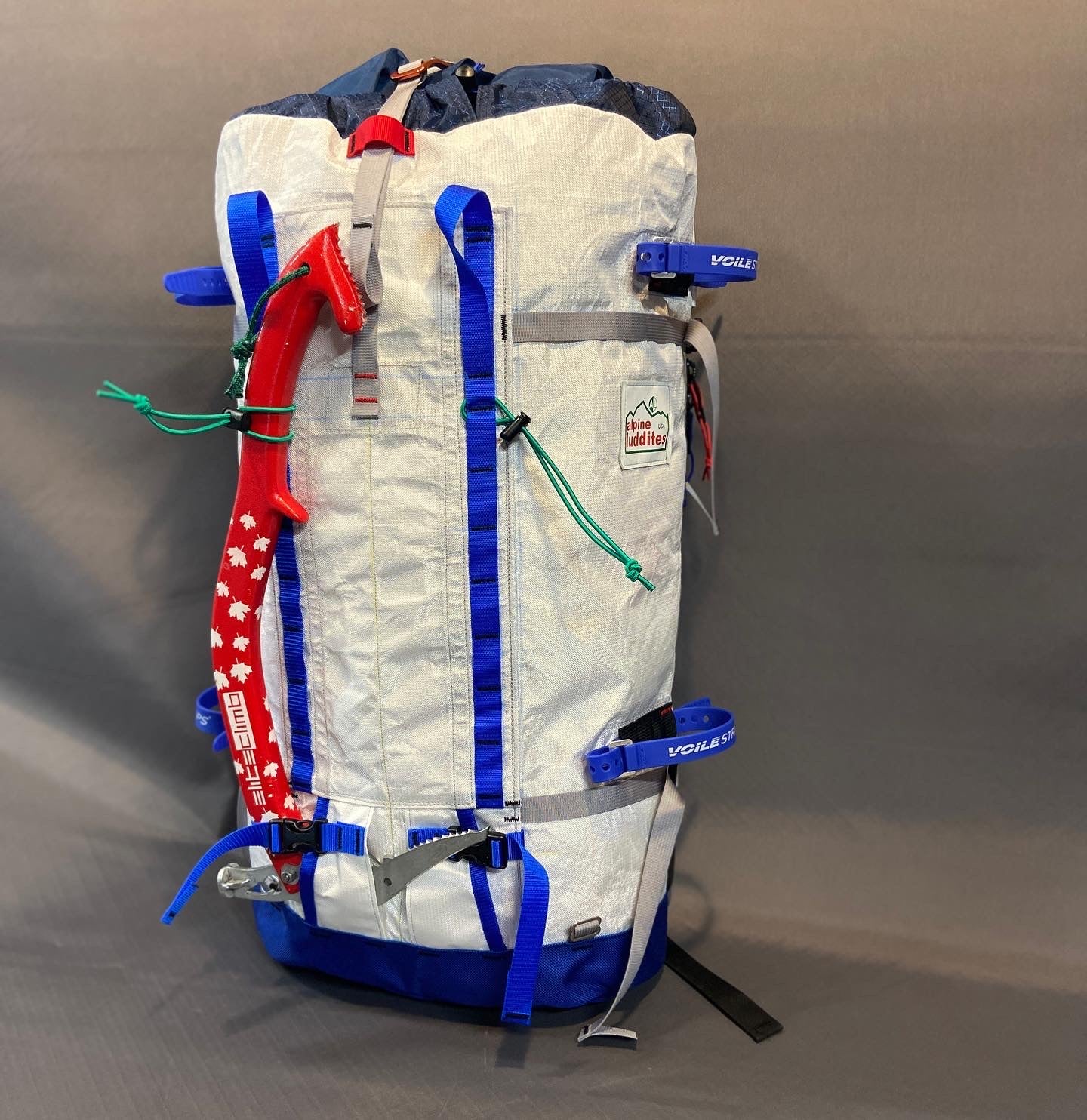

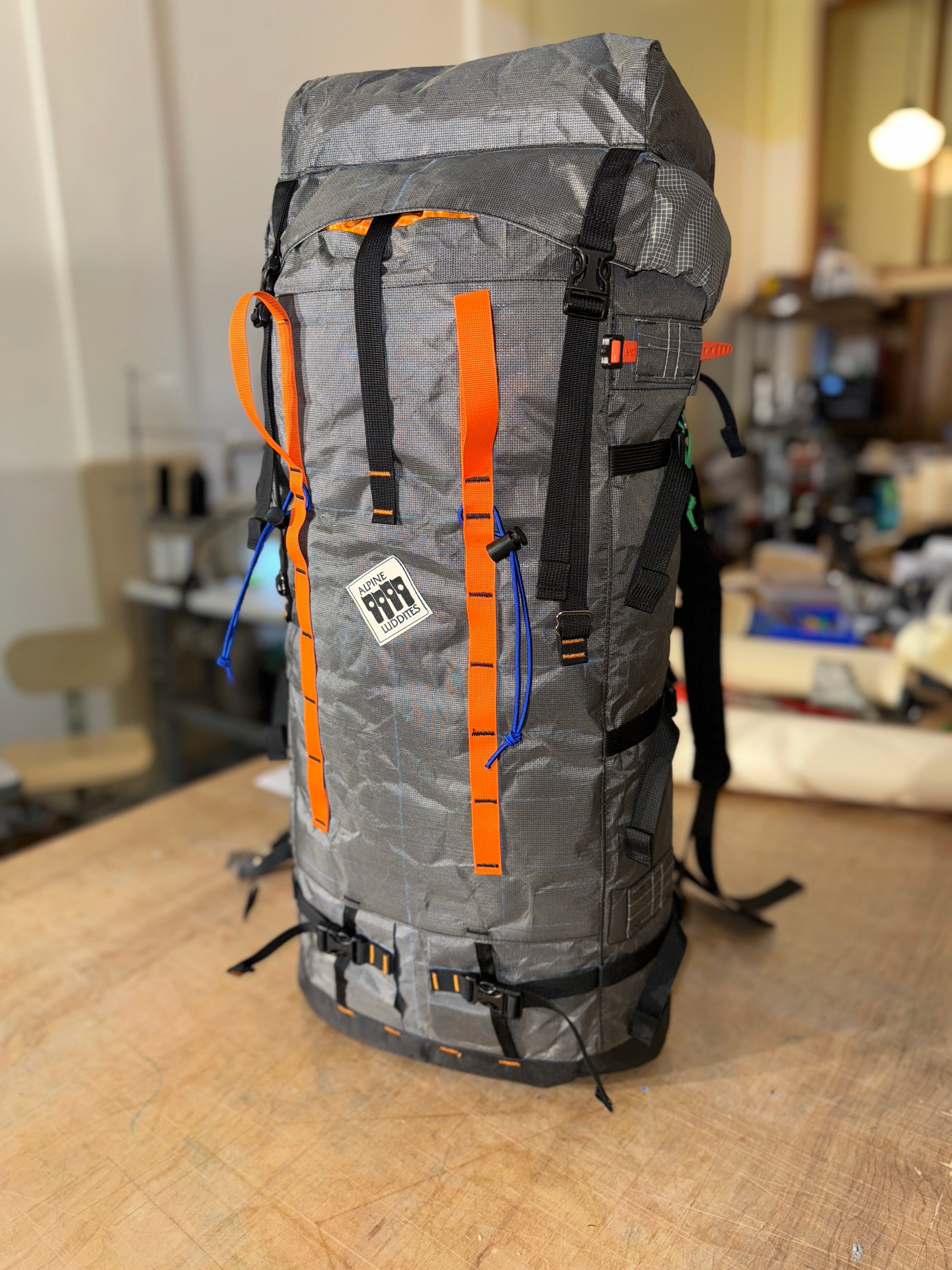

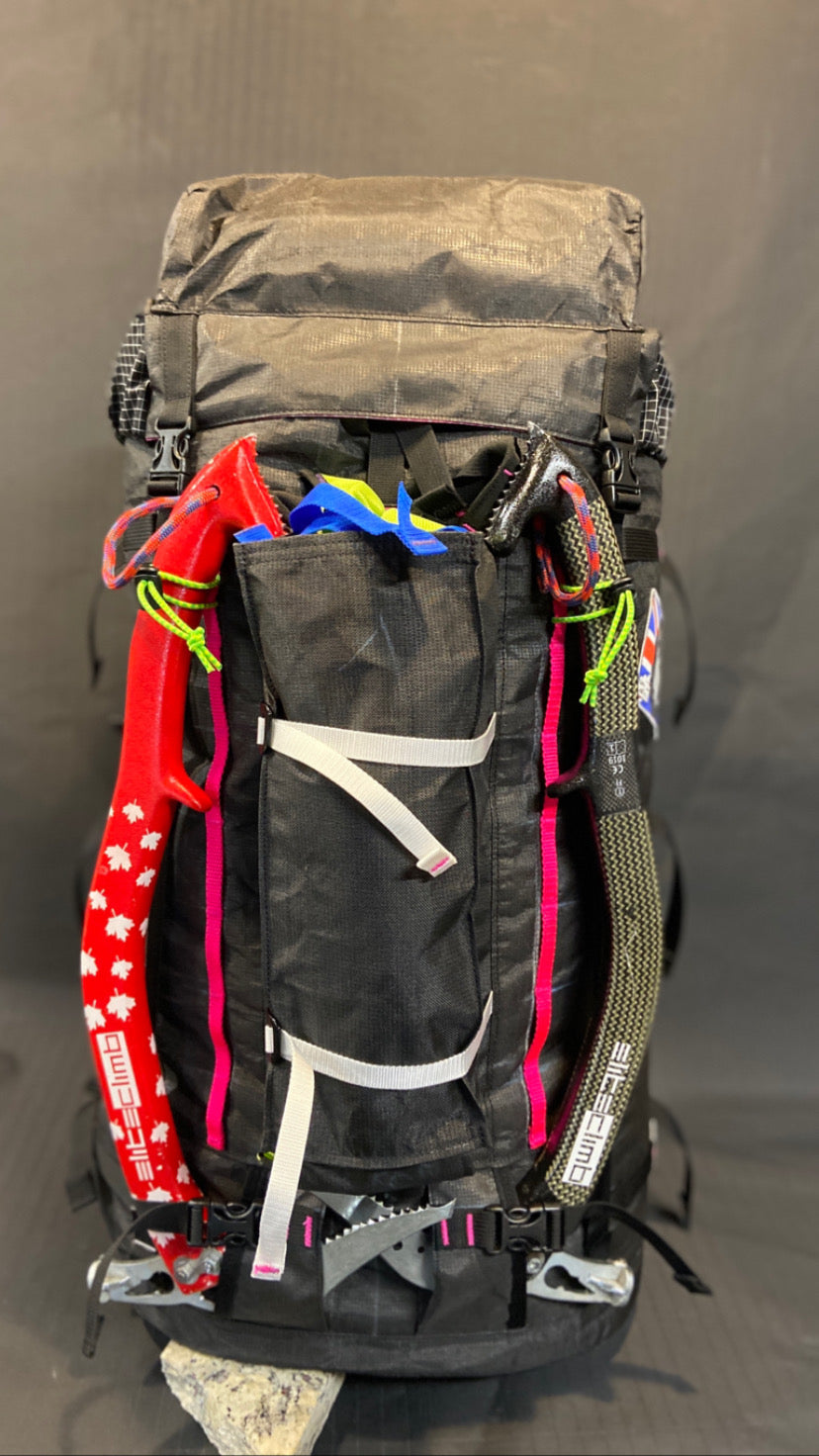

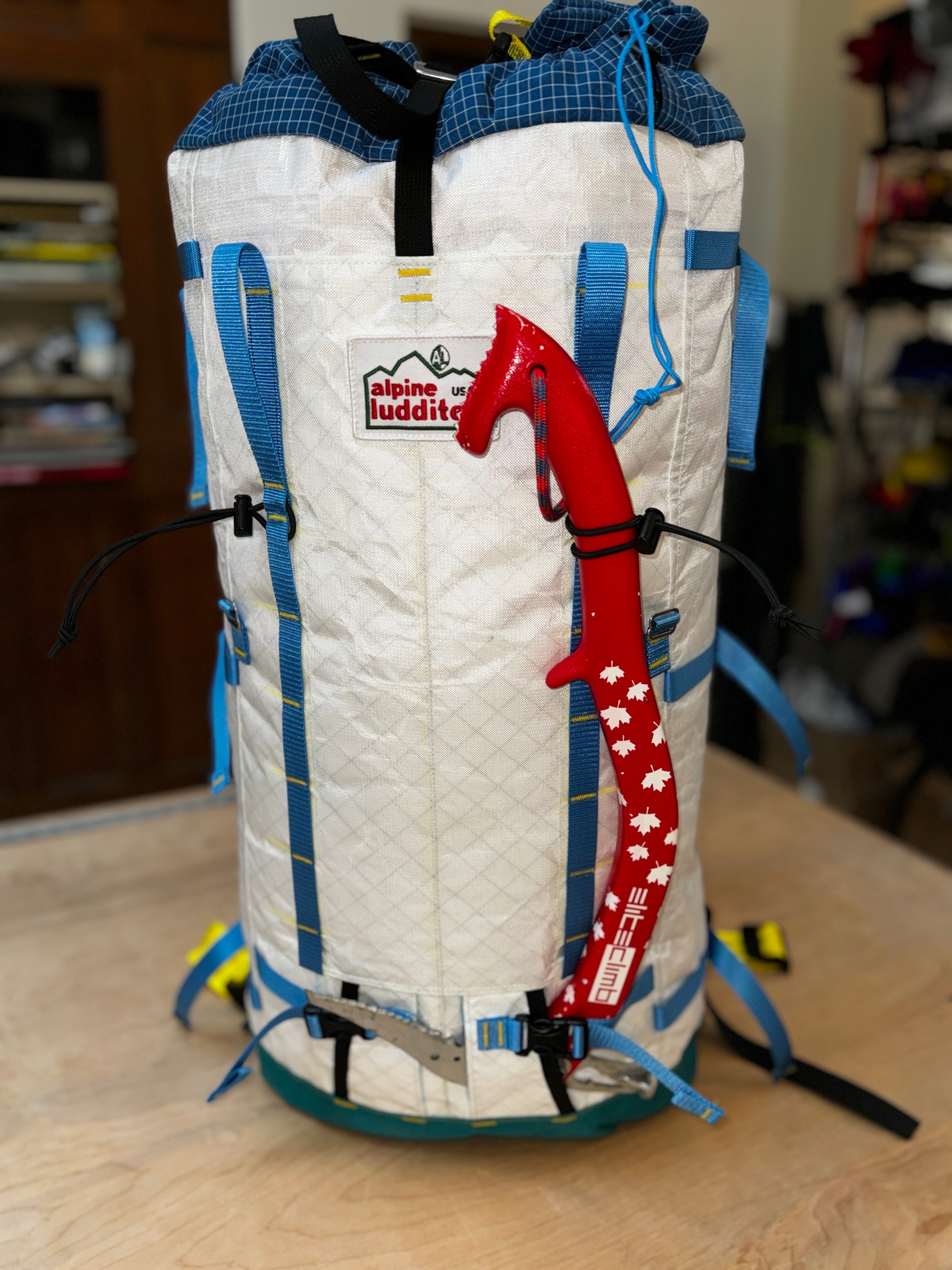

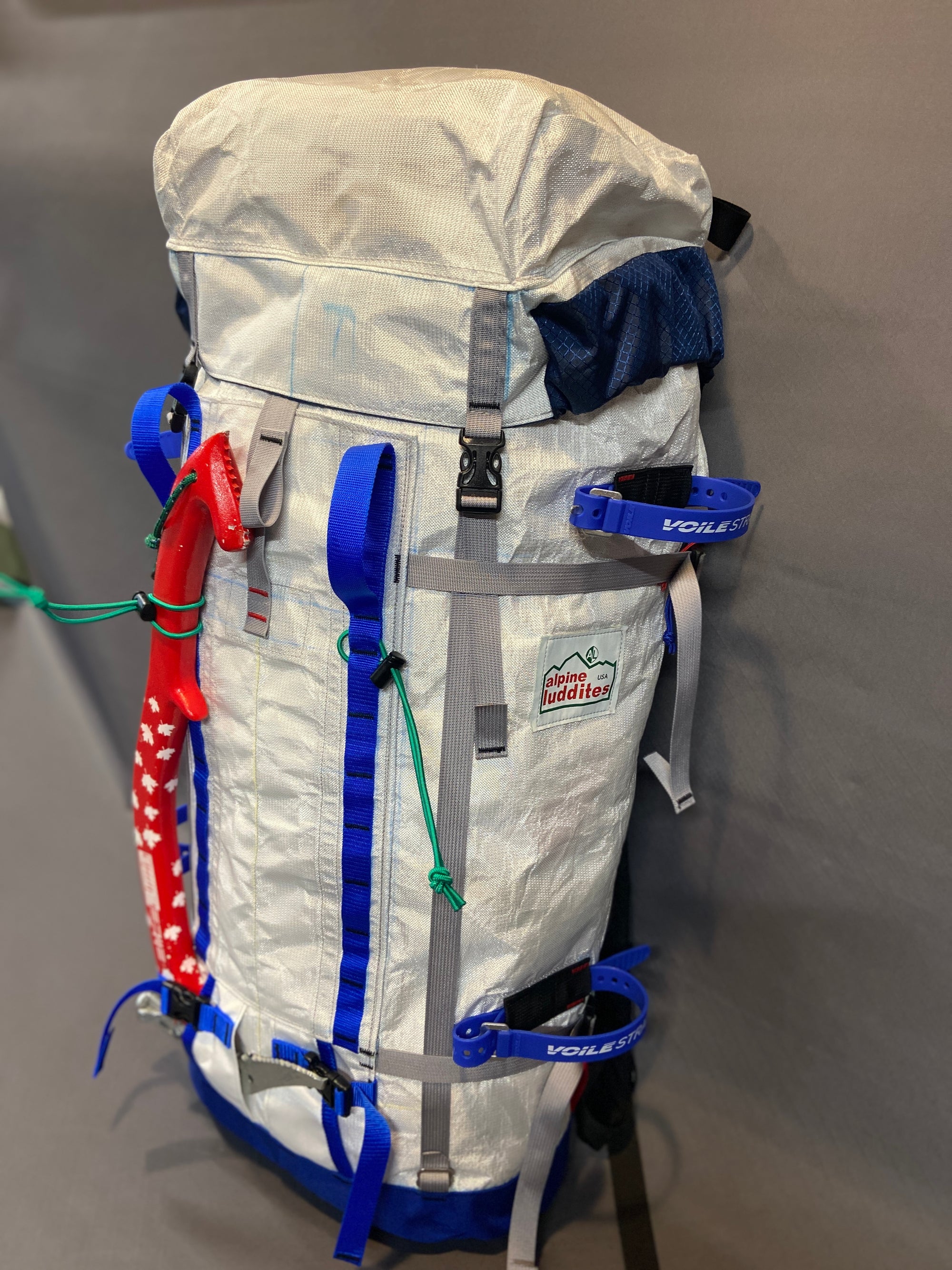

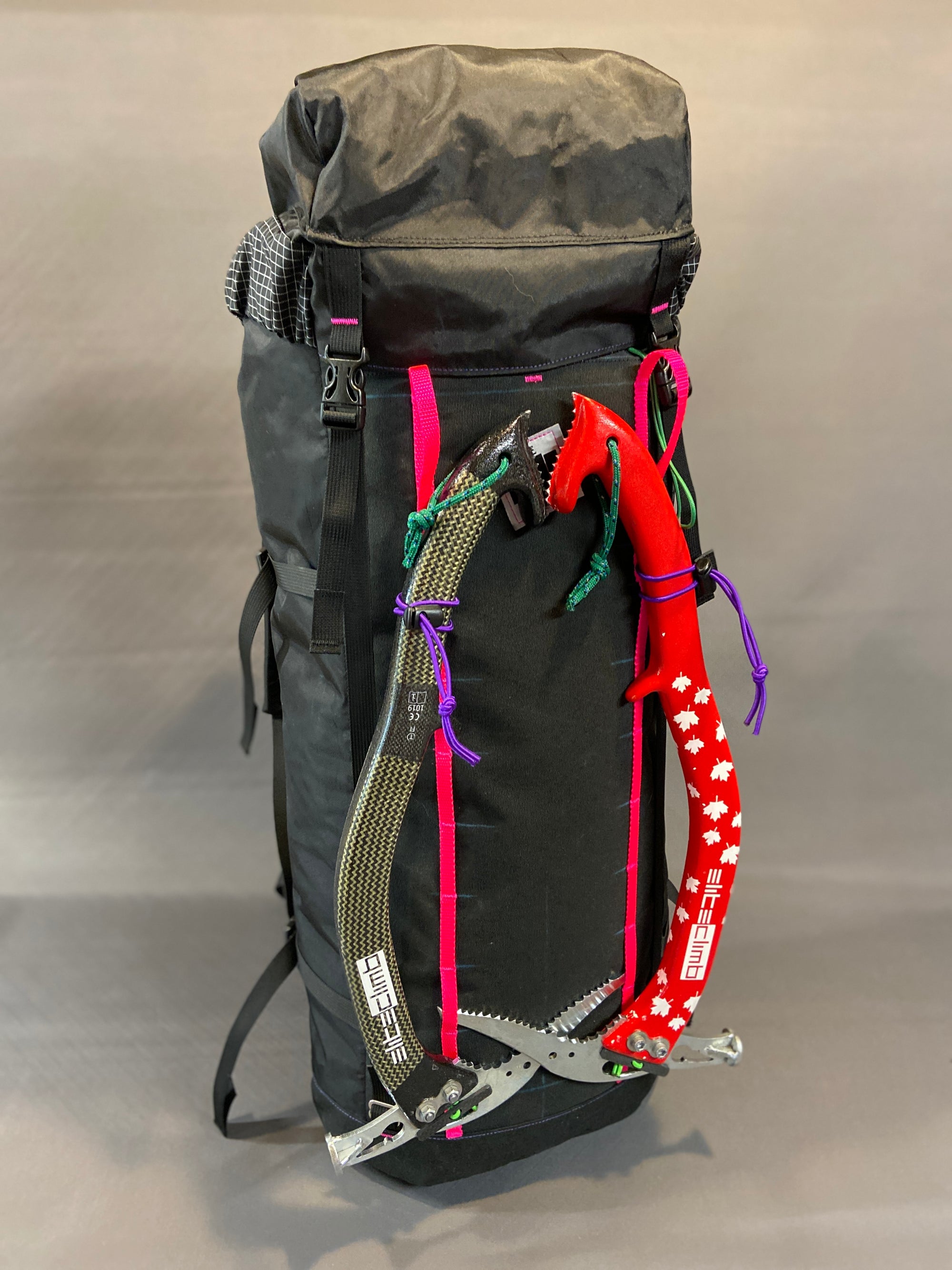

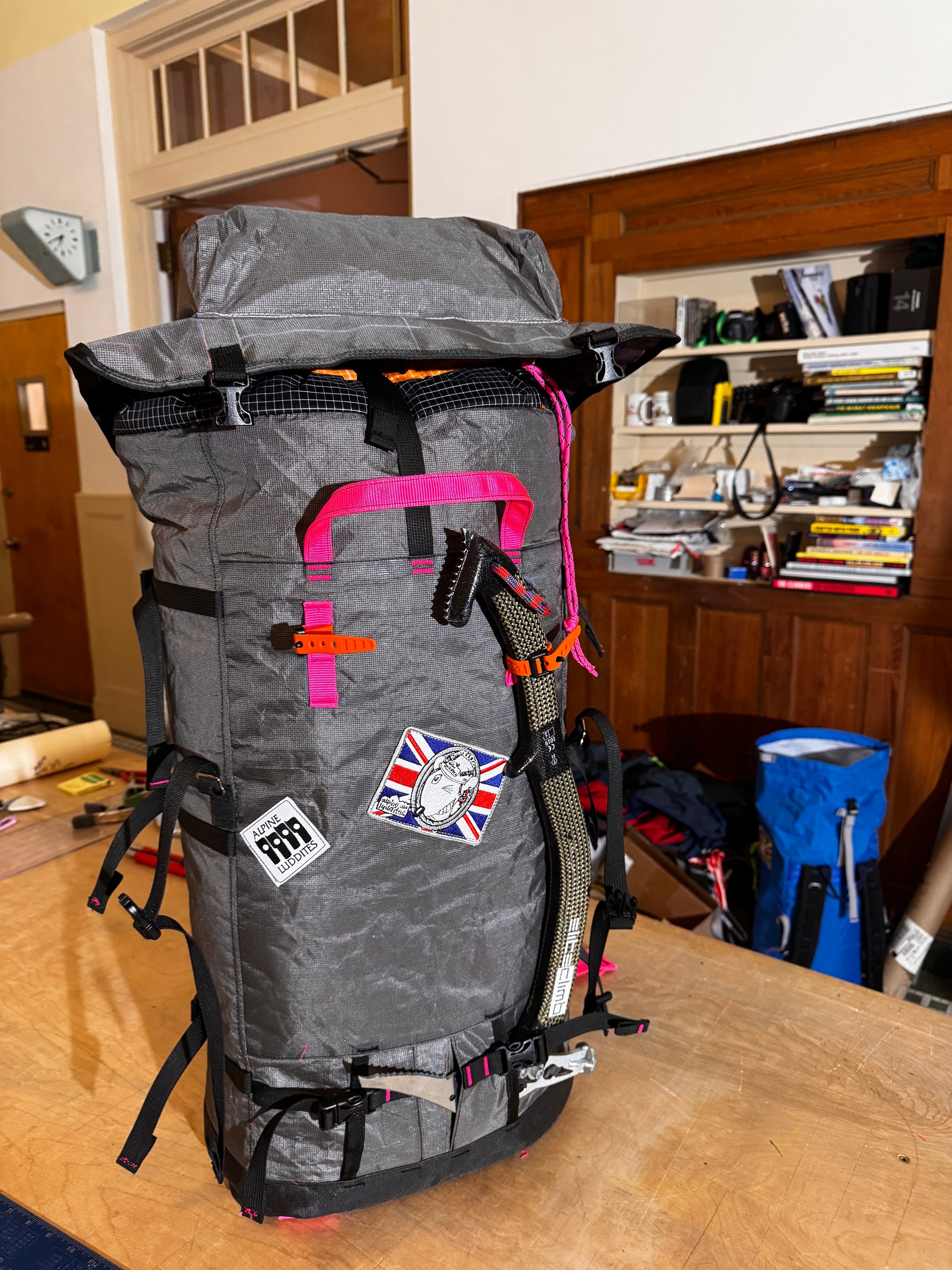

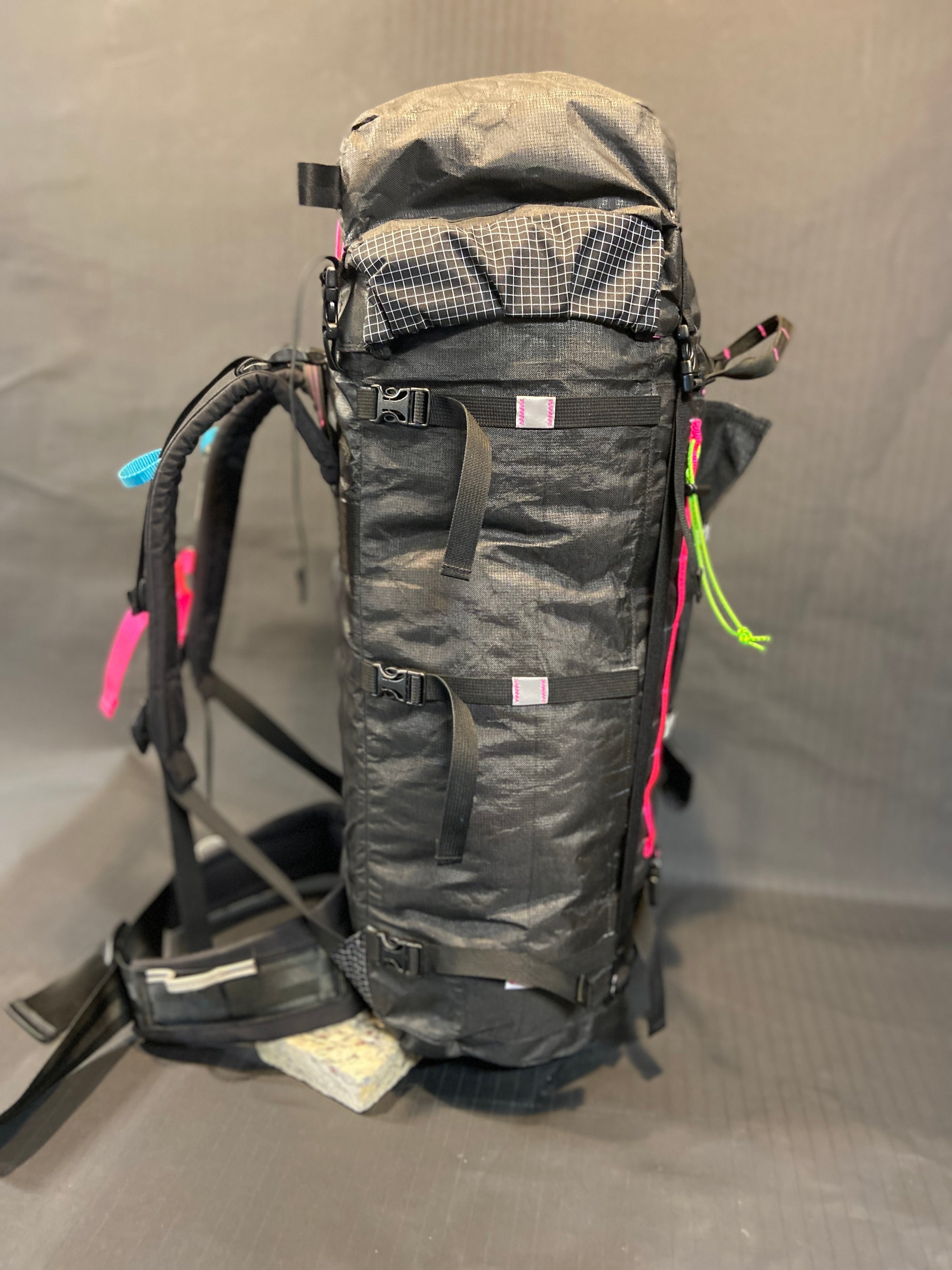

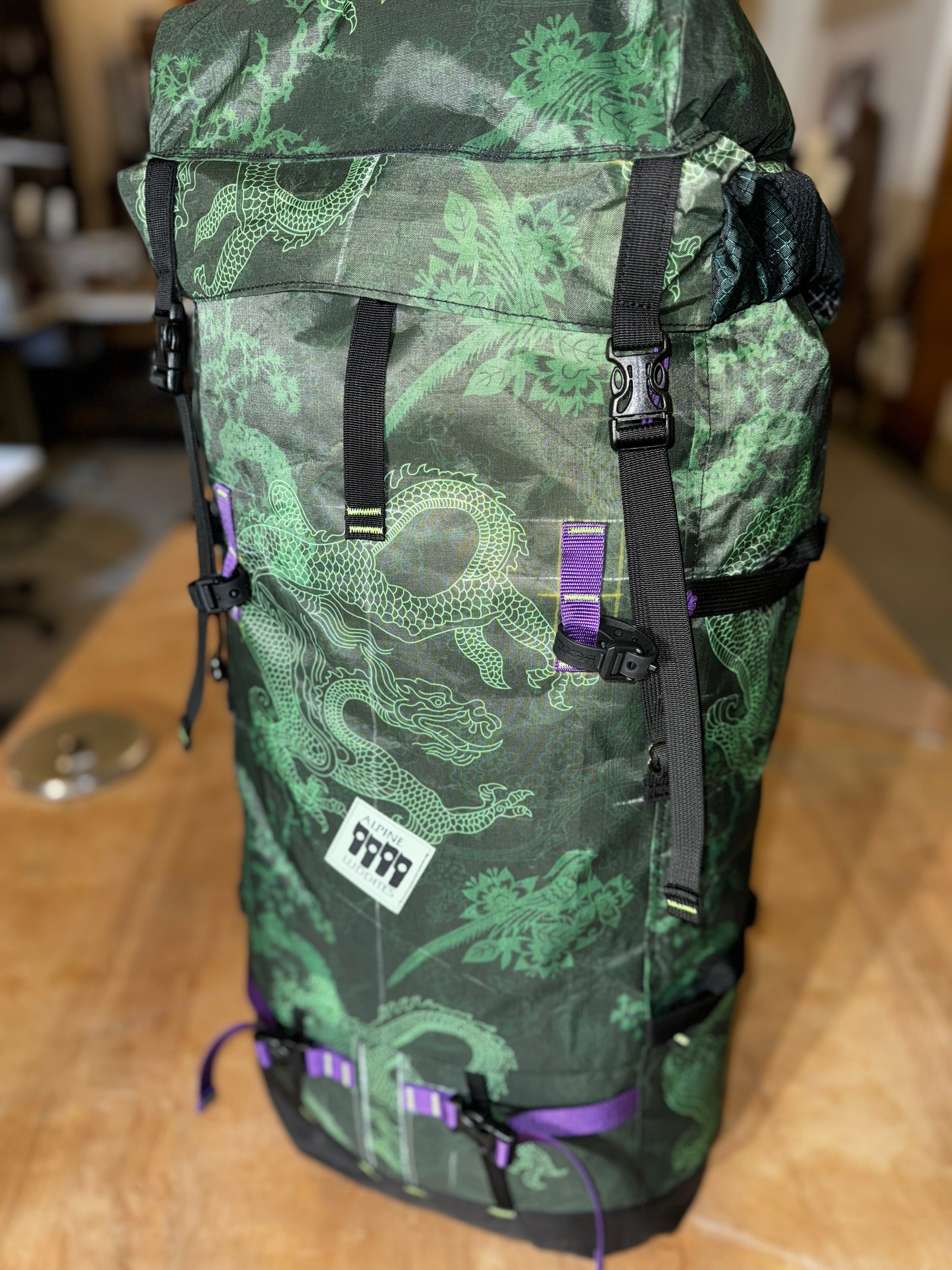

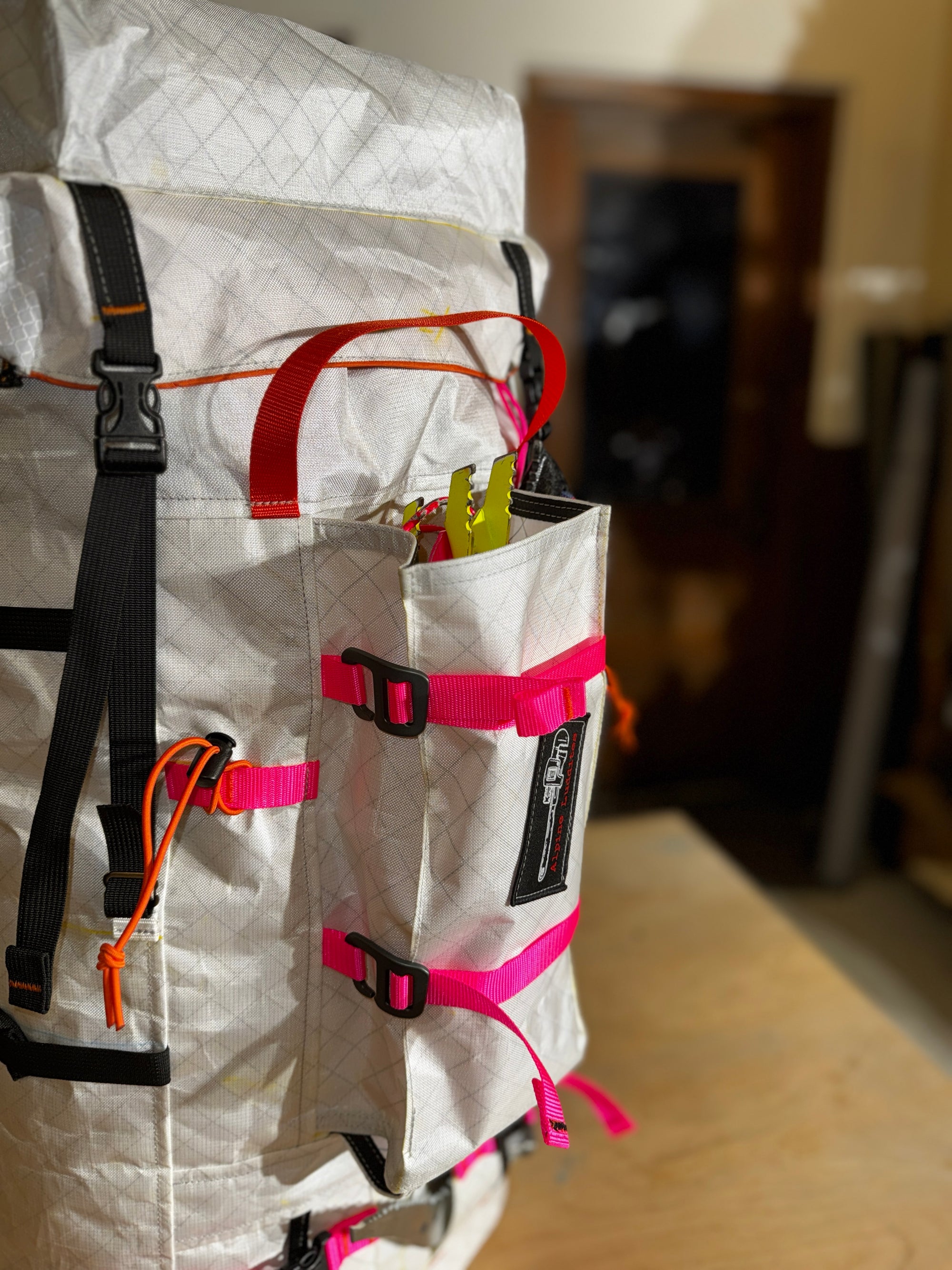

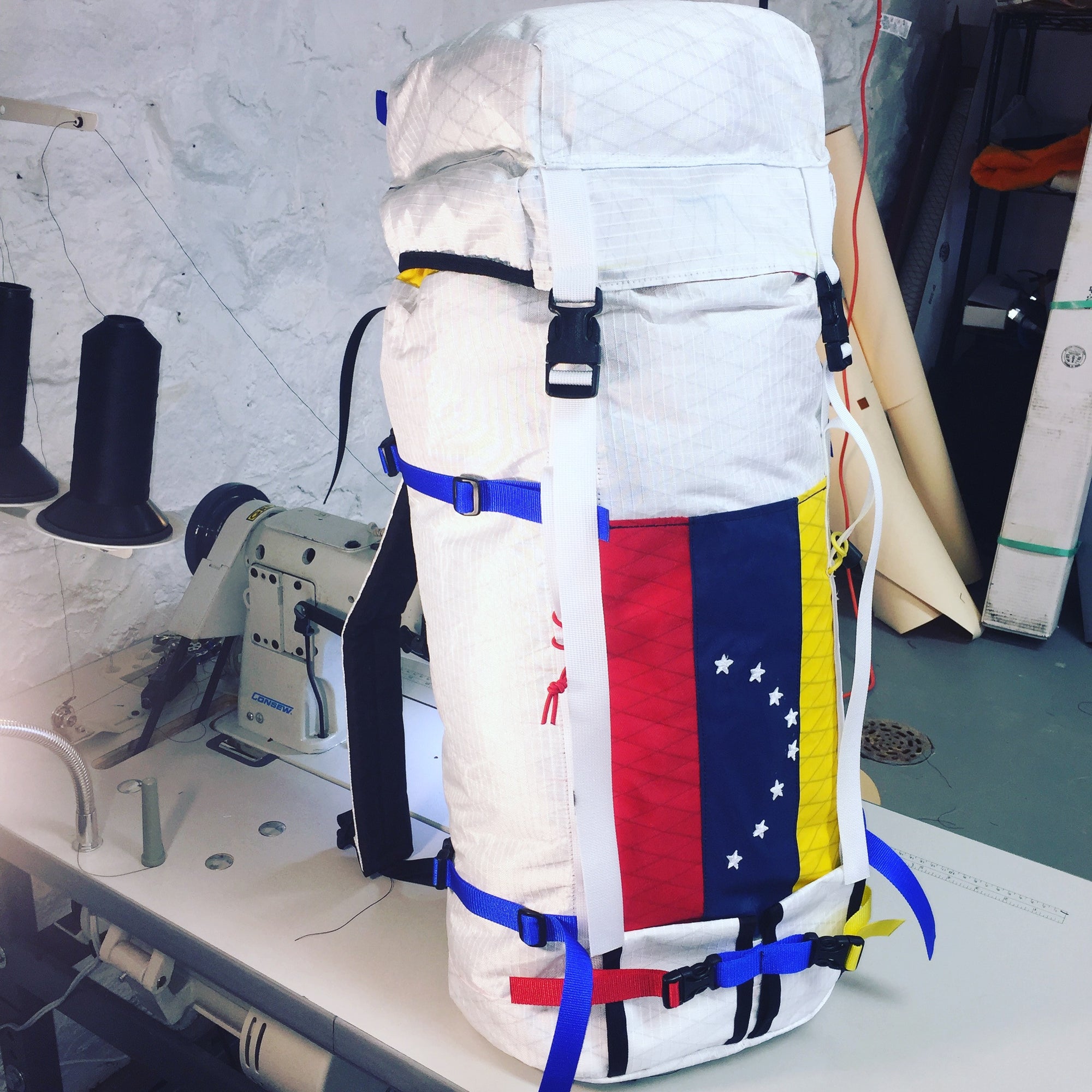

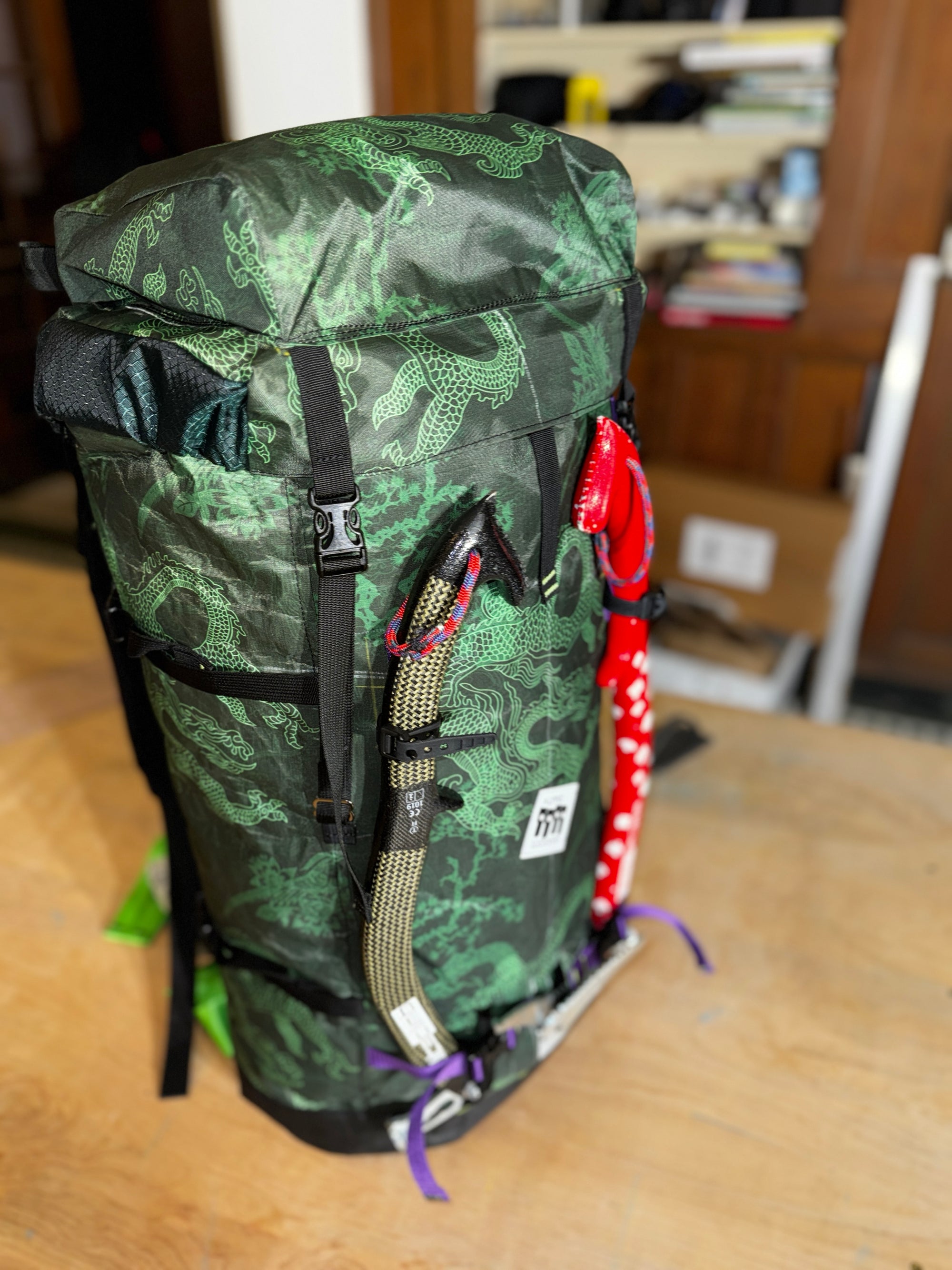

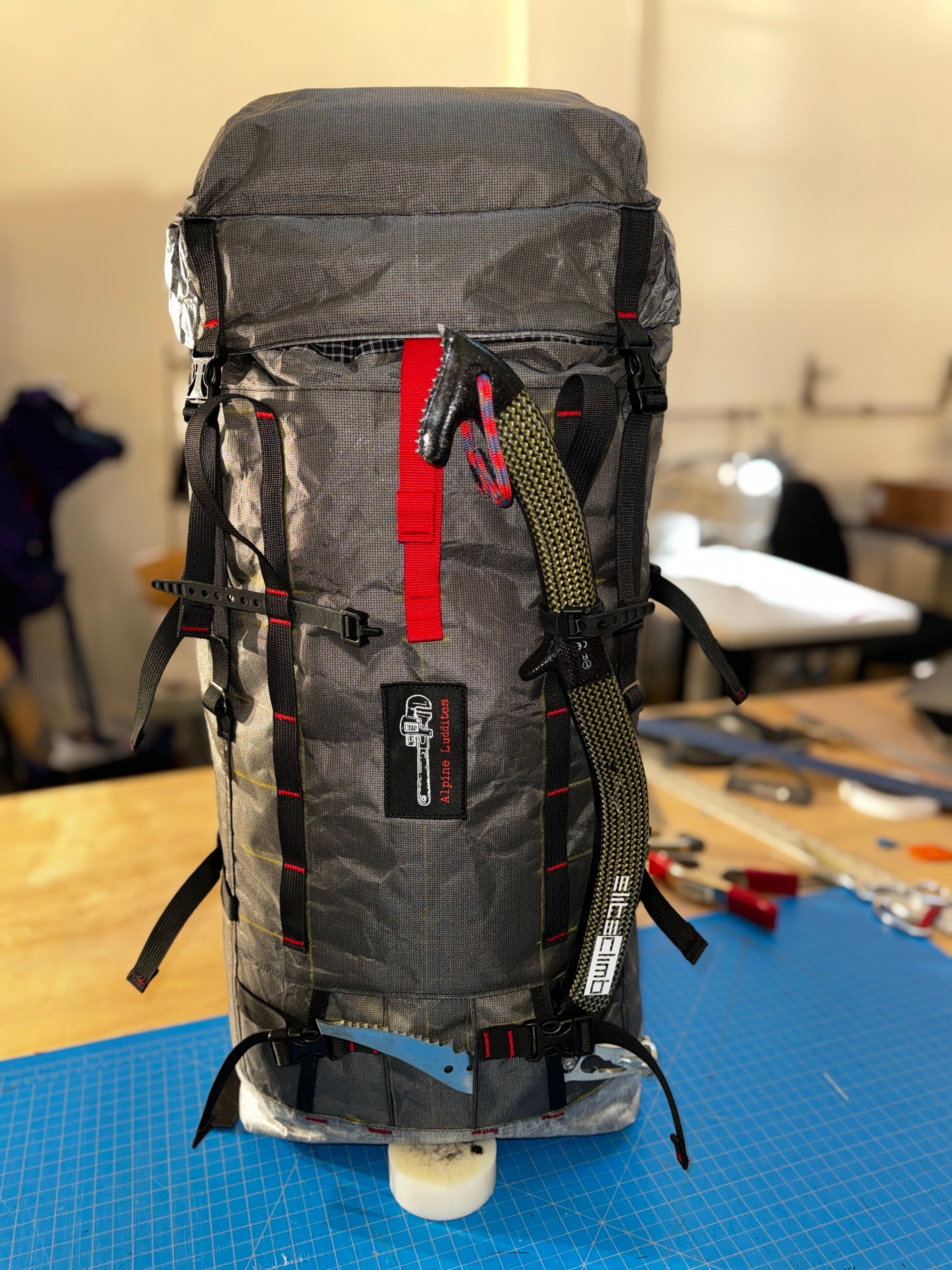

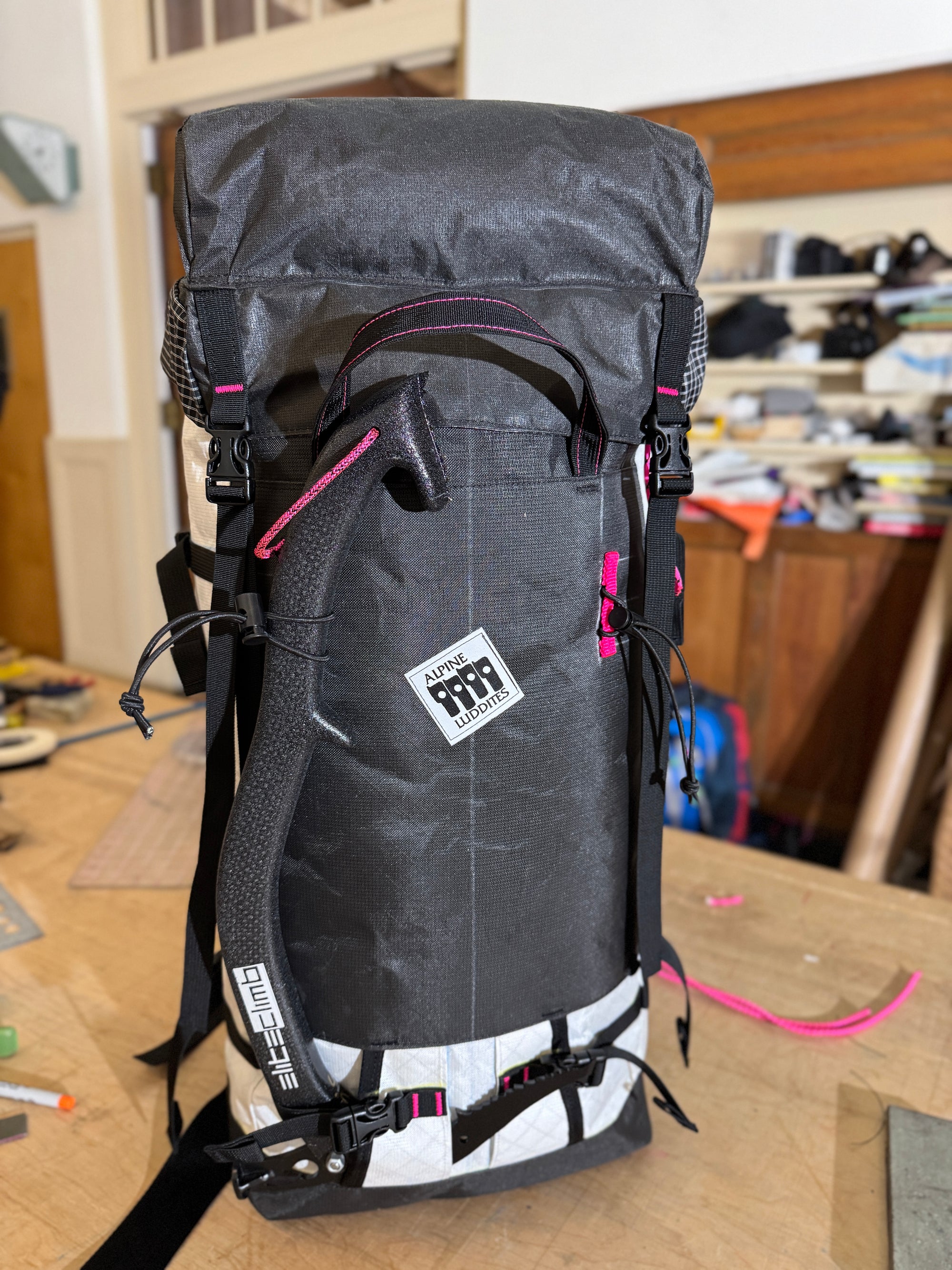

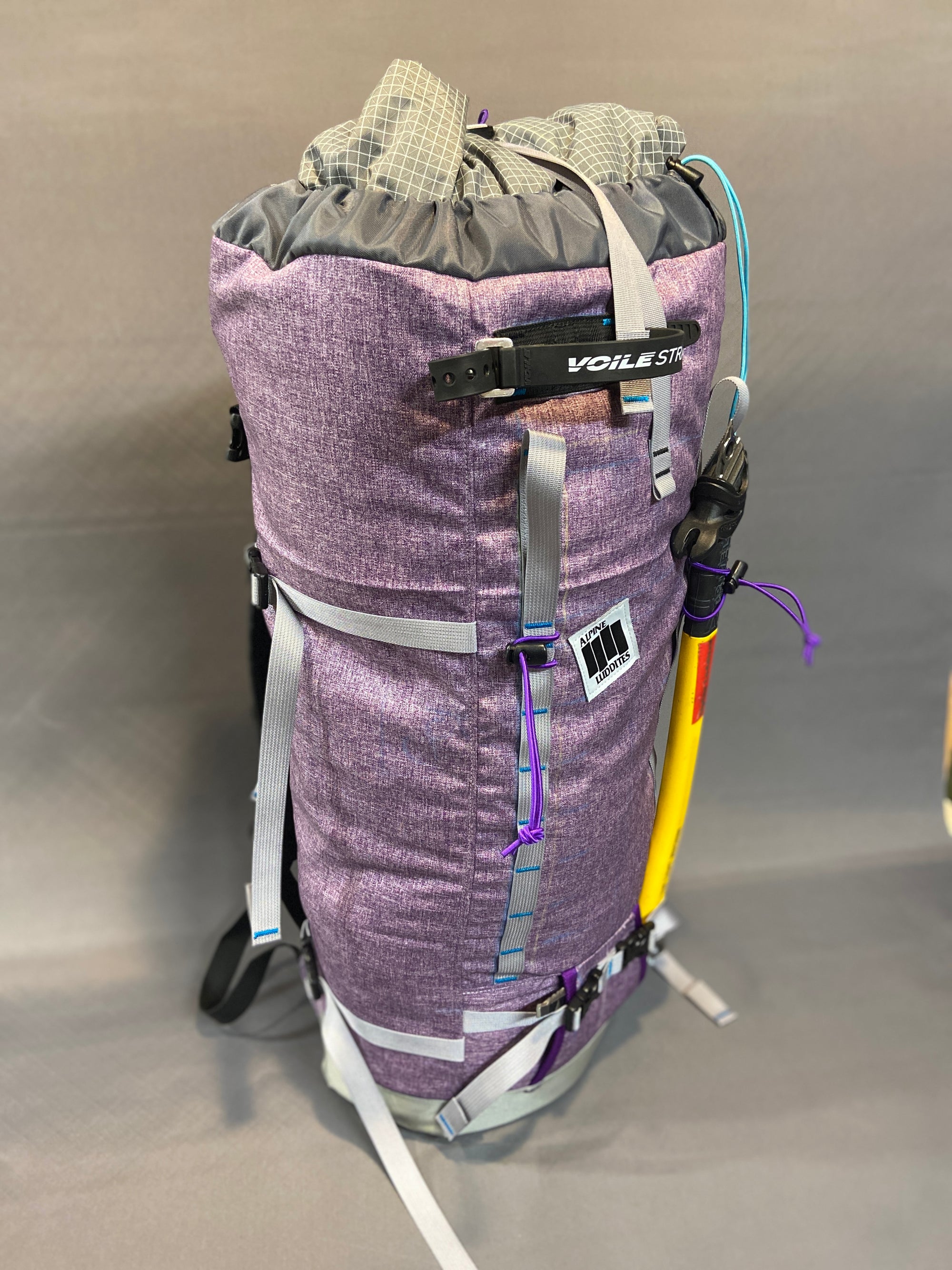

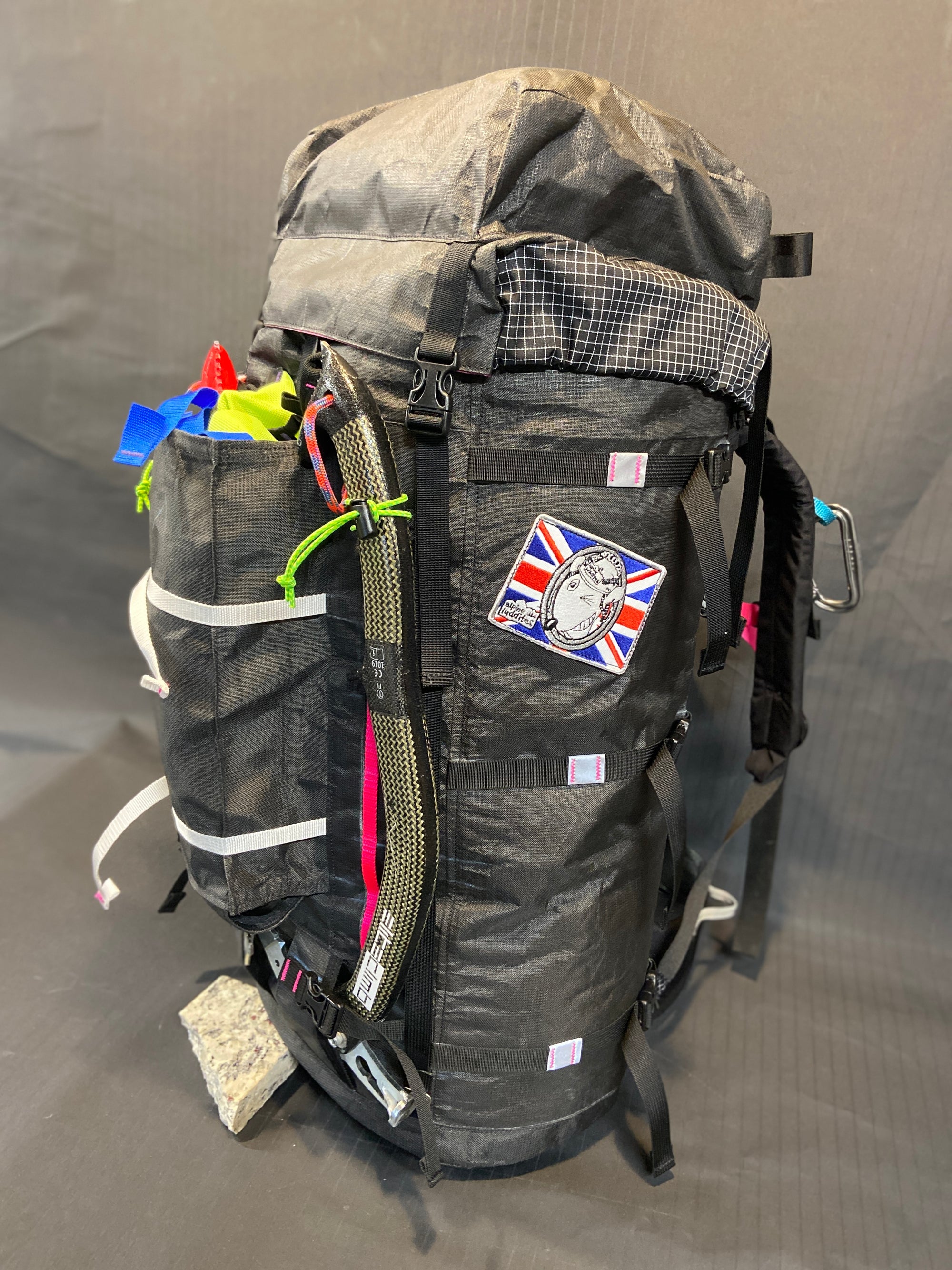

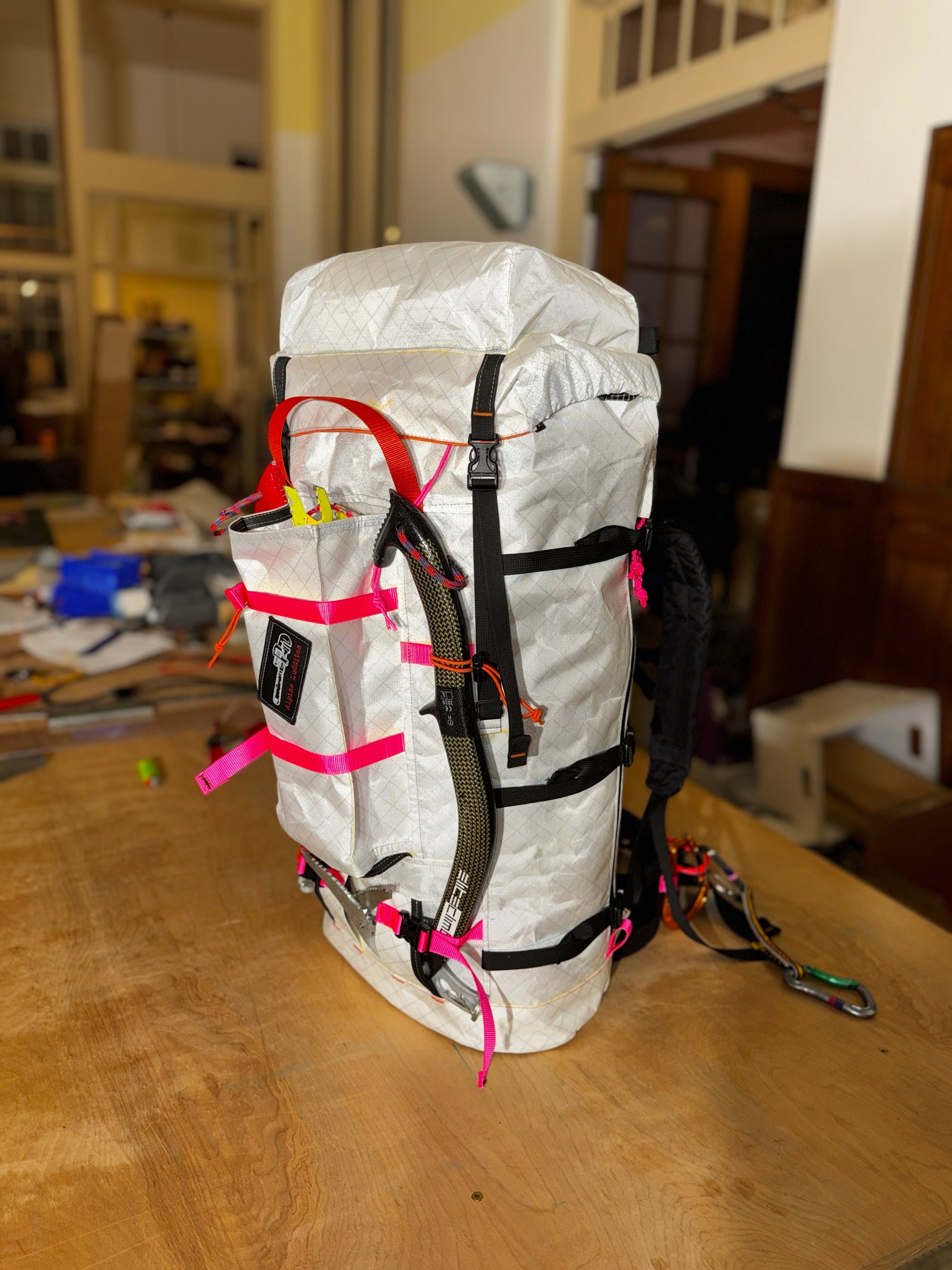

Alpine Machine 40 & 50 Liter Pack
$850.00
The Alpine Machine 35-55 Liter Packs
Today I tell people no two packs that leave the shop are the same. What do I mean by this? Every Alpine Machine pack is designed and built just for you. Your needs are the primary design focus. The height, width and depth of the bag is adjust to to fit your body/volume needs. The harness components, size and fitting are tailored just for you. A 70 L pack for someone with a 21 " torso will look alot different than a 70L pack for a 15" torso. They will both fit 70L worth of gear, but all similarities end here.
Every "base model" is just a place to start the conversation of what you need. We can talk over the phone, visit in the shop or meet up and go climbing. There are a lot of optionsfor designing a pack and we work through the list together. I like to have a conversation early in the process, just to get us both thinking about your pack and you are free to change things up until final payment and I start making your pack.
features in common to all my alpine packs included in the base price
back length, shoulder strap spacing, shoulder strap width, made to measure padded hip belts, in 3 styles
Ultra UHMWPE woven fabricsin multiple weights from Challenge Sailcloth
full length foam back pad
7075-t6 aluminum frame stays included in packs over 50 L, optional in sub 50L packs
packs set up for technical climbing/backpacking/ ski mountaineering
choice of webbing size/colors
choice of trim fabrics/colors
Costs: cost for the finished pack will vary, with $850 being the base price with full lid/brain and all the custom fitting and options on the order form. once we have a phone call or shop visit sorting out the details and any extra options or fabrics that add to the base price i can invoice you for the remaining cost when I am a couple weeks out from making your pack. the pack Deposits are non refundable.
Custom:
download the custom pack order form. You can see some of the most popular custom options here.
After you order a pack I'll contact you to review the custom order form together.
Pack Volume:
The Alpine pack is available in 2 volumes; 40 &50 liters. features are identical throughout the range.
sizing notes:
custom sized back length
- sizing notes: for sizing, I'll need your waist size in just a shirt. for back length measure from where you want the bottom of the pack to sit to top of your shoulder. If you plan to wear this with a harness on and climb wearing the pack, measure from where you want the bottom of the pack to sit in relation to your harness to top of your shoulder. For normal mountaineering use I'll need the length from where you like your pack to sit on the bottom edge of your back to the top center of the shoulder, but don't wrap the tape over your shoulder. Our padded hip belt is 3.5" wide, narrow enough to allow you to lift your legs while post holing but wide enough to help transfer some of the load. It's fully removable for climbing.
Construction: this pack is built with only two main seams that attach the two body panels together. There is no need to worry about blown stitching either. all seams have multiple passes at 8 -10 stitches per inch. compare that to most mass produced gear. All seams are taped for durability. all webbing attachment points have 6-8 lines of stitching. All webbing stress points are fully reinforced with a second layer of webbing.
Specs:
- Volume options: 40 or 50 Liters. The bivy extension allows you to vary this by 5 -10 Liters. The lid adds 5 Liters to the volume, but its extra volume isn't included. IE a 40L pack is 40L without a lid. The Don lid is a flat pocket.
- Two-pocket lid, one on the underside. Fully removable from any position. can be purchased later or if it gets trashed or lost.
- roll top bivy extension is made out of Xpac VX21 fabric, which is waterproof to 200 psi. finished extended length is ~12".
- regular bivy extension is made out of 7 oz ripstop pack cloth so it won't tear out of your pack.
- Weight-24-56 ounces depending on volume and features, but as each pack is tailored for each customer the weight can go up or down. please contact me to discuss this more.
- sizes: each pack is custom sized, made to measure back length, waist belt, and shoulder straps
- closed cell foam back pad
- removable padded hip belt.

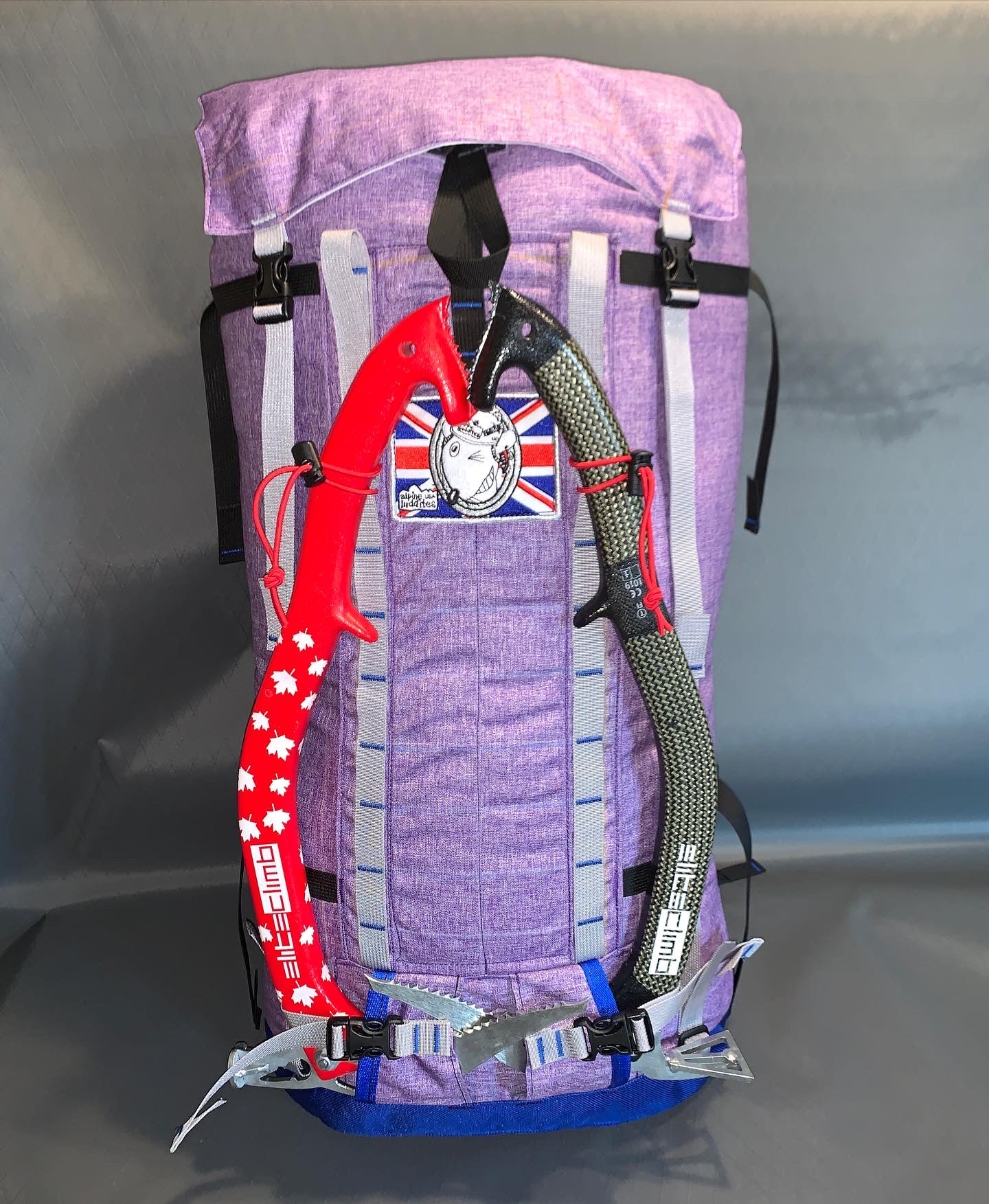

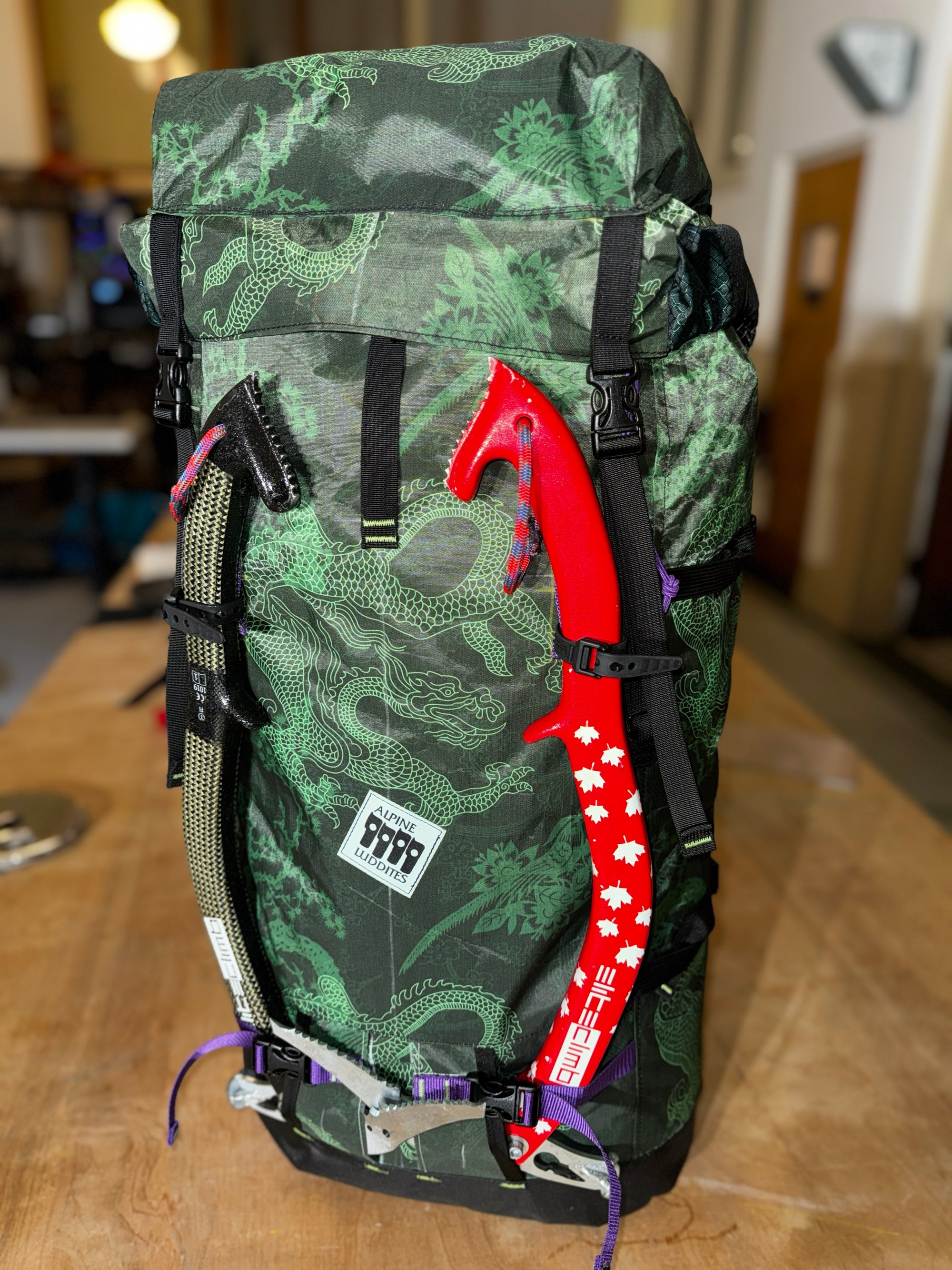

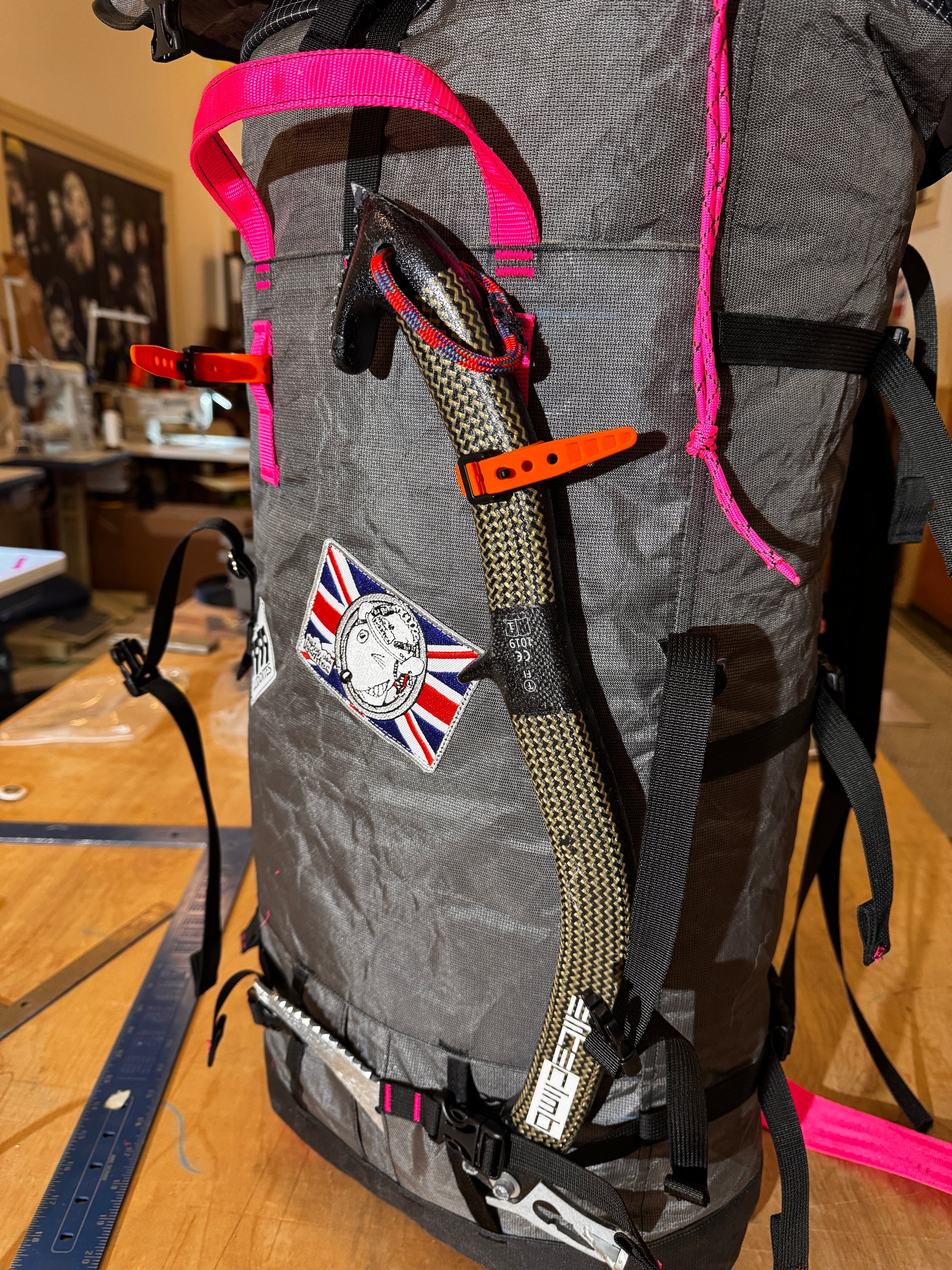

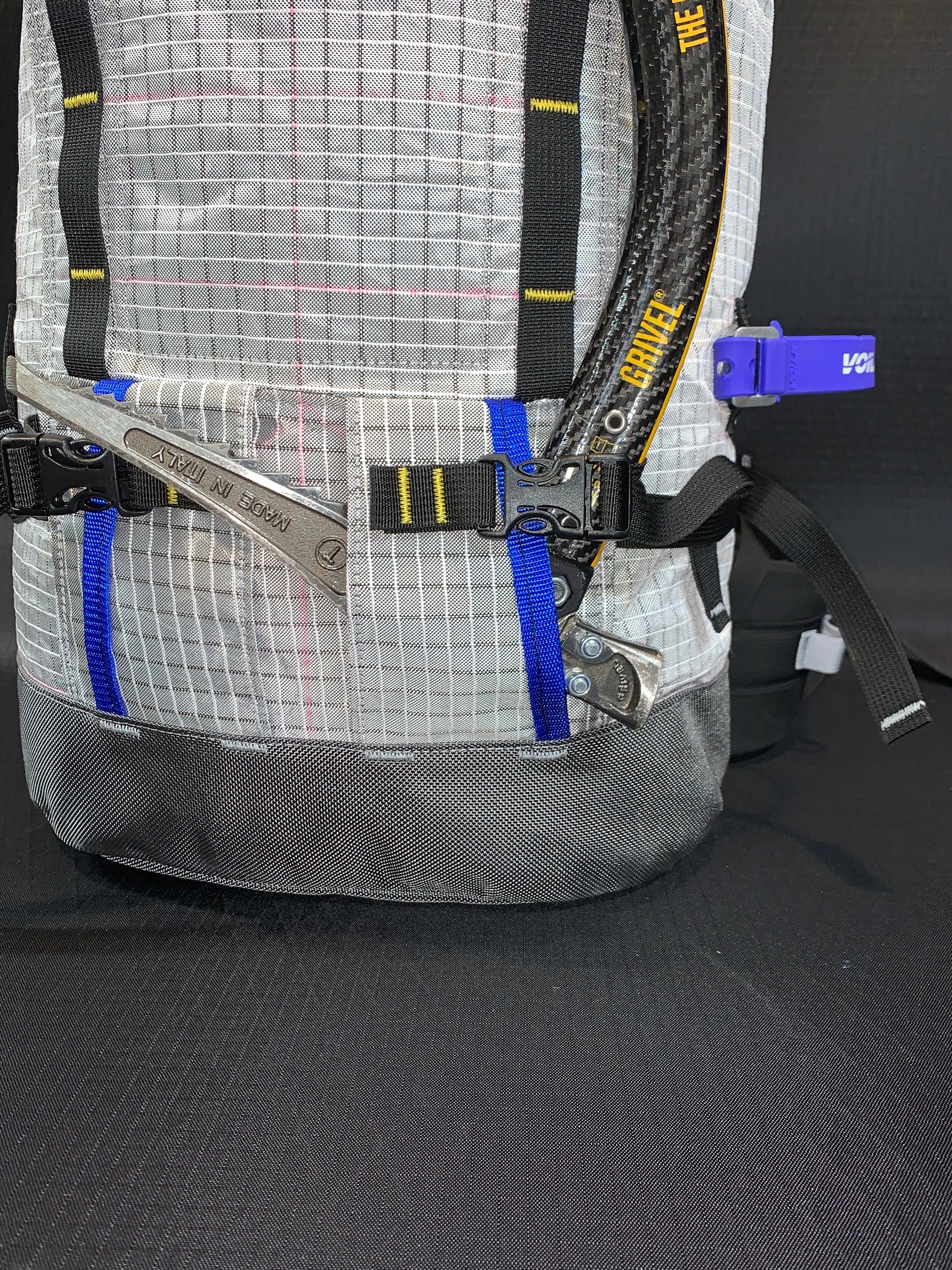

- Ice tools & crampon patch reinforced with the 2nd layer of fabric.
- full strength front and rear haul loops. front loop is reinforced with a layer of 2" nylon webbing sewn onto the pack. Haul points are sewn on top of this to spread the stress out onto the entire front of the pack, not just into the stitching.

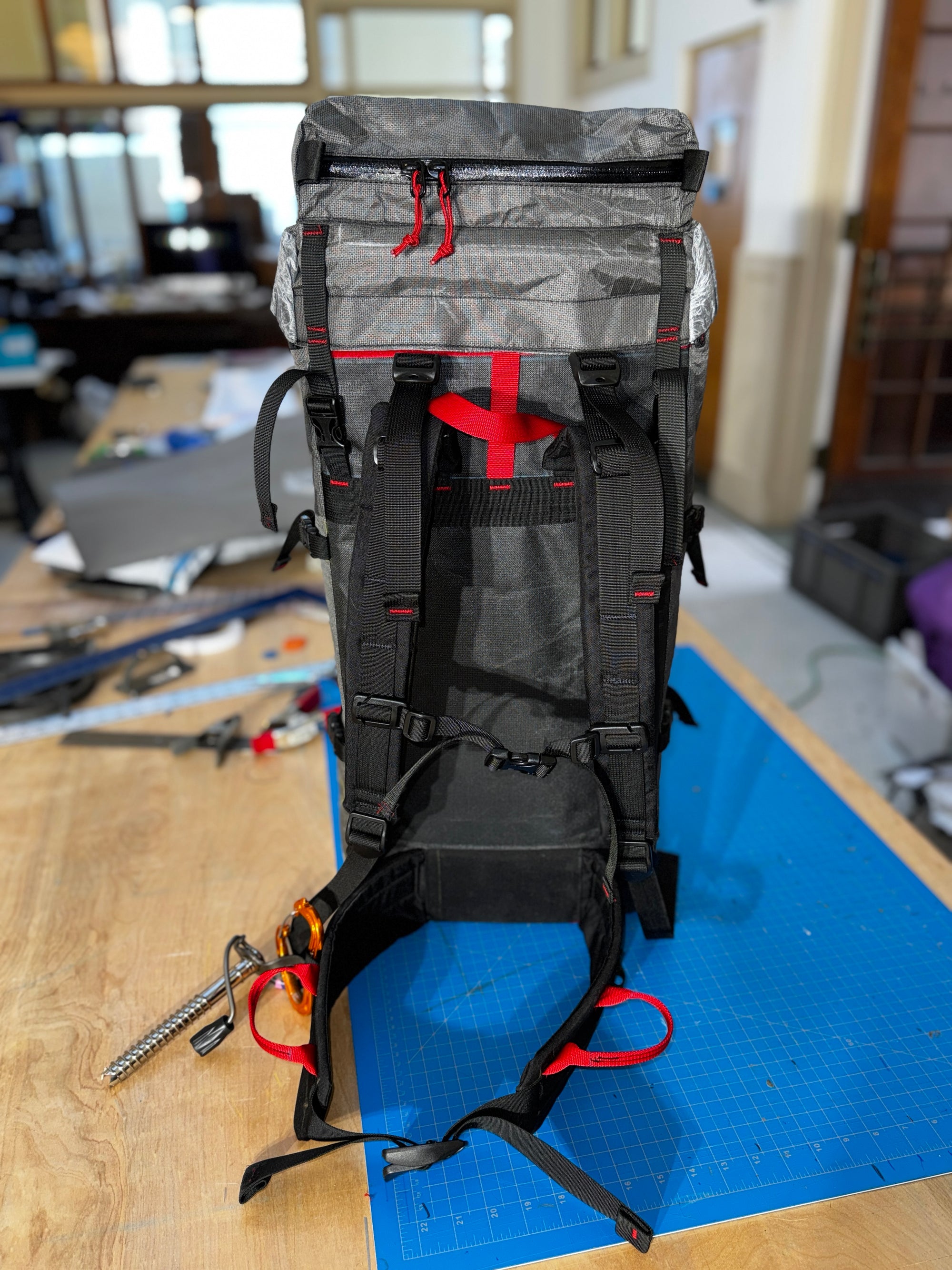

- shoulder straps have a fully adjustable sternum strap and lift straps. both removable.
- rope strap.
- Fabric:
- Ultra 200,400,800 . these are woven UHMWPE fabrics, also sold as Dyneema, Spectra brand names. Other options are available on the Custom Pack Order Form.
How to order:place your Deposit by choosing your choice of options from the menu. once your order is placed I will either email or set up a call, and we will go through all the details of size, volume, materials, colors, etc..
Collections: Alpine Backpacks
Type: Alpine pack
